120mNm NEMA 11 Stepper Motor 28x28x51mm Casun Stepper Motor

Name: 120mNm NEMA 11 Stepper Motor 28x28x51mm Casun Stepper Motor
Brand: Casun
Price: 5.94 USD

Quality 120mNm NEMA 11 Stepper Motor 28x28x51mm Casun Stepper Motor wholesale

Brand Name : Casun

Model Number : 28SHD4501-20B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $5.94-$8.6

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 120mN.m

Current : 0.67A

Motor Length : 51.5mm

Shaft : Milling flat Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 28mm hybrid stepper motors typically have smaller dimensions and lower weight, making them suitable for compact spaces and lightweight equipment.

With high accuracy and resolution, precise position control can be achieved.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Manufacturing with expertise in research and development
Different situations may call for a particular stepper motor model
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	120 mN.m
Resistance	9.2 ohm
Inductance	7.2 mH
Rotor Inertia	18 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

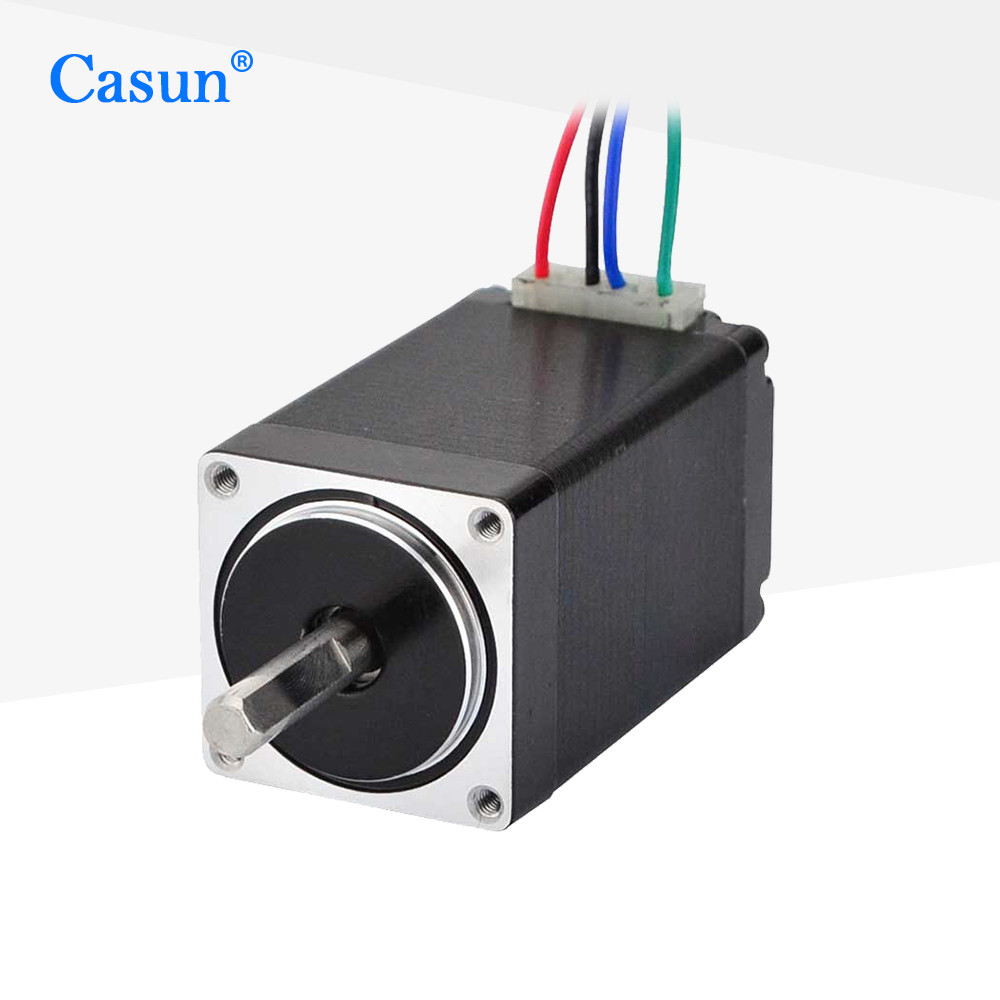

Appearance

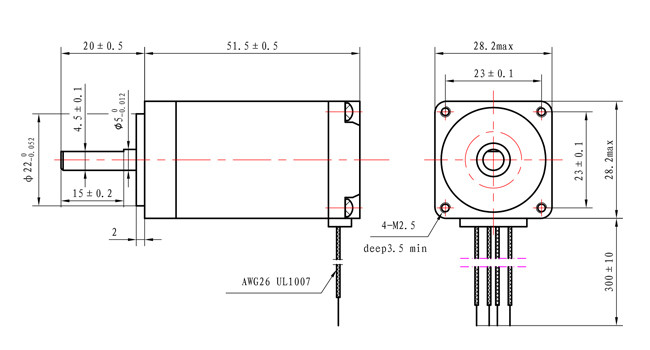

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
