0.67A NEMA 11 Hybrid Stepper Motor 282832mm 80mN.M 0.67A CE ROHS

Name: 067A NEMA 11 Hybrid Stepper Motor 282832mm 80mNM 067A CE ROHS
Brand: Casun
Price: 5.94 USD

Quality 0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS wholesale

Brand Name : Casun

Model Number : 28SHD4207-20

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $5.94-$8.6

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 80mN.m

Current : 0.67A

Motor Length : 32mm

Shaft : Round Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 28mm stepper motor is very controllable and can accurately control the speed and direction of rotation by controlling the frequency and sequence of current and pulse signals.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.

Features:

Bipolar or unipolar versions available
Manufacturing with expertise in research and developmen
High torque and high precision
Wanted dealers! !
Our engineers will be in touch within 48 hours to provide the best solution

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 A
Holding Torque	80 mN.m
Resistance	5.8 ohm
Inductance	4.1 mH
Rotor Inertia	9 g-cm²
Motor weight	0.12 kg
Number of leads	4
Connection	Bipolar

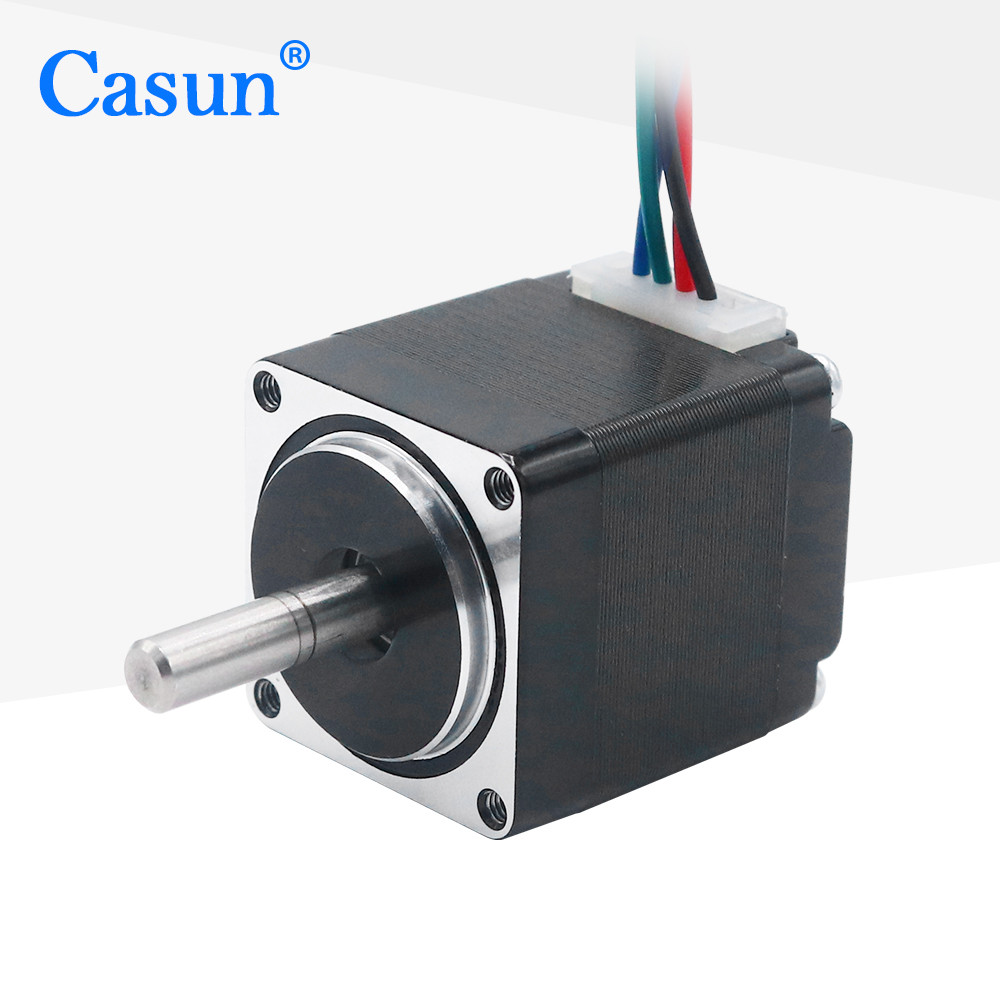

Appearance

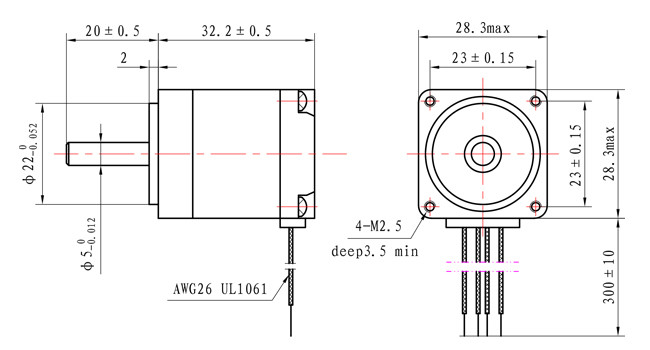

Dimensions

Torque Curves

Downoad

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.

0.67A NEMA 11 Hybrid Stepper Motor 28*28*32mm 80mN.M 0.67A CE ROHS
