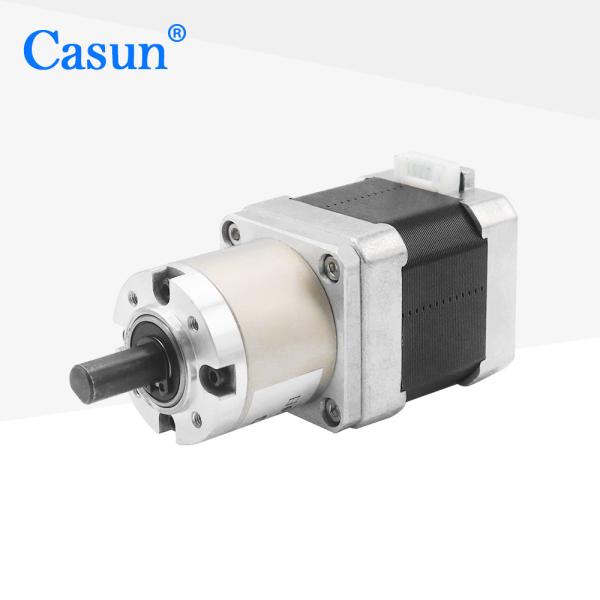

High Torque NEMA 17 Economy Planetary 424248mm Stepper Motor Gear Ratio 1:13

Name: High Torque NEMA 17 Economy Planetary 424248mm Stepper Motor Gear Ratio 113
Brand: Casun
Price: 16.49 USD

Quality High Torque NEMA 17 Economy Planetary 42*42*48mm Stepper Motor Gear Ratio 1:13 wholesale

Brand Name : Casun

Model Number : 42SHD0404-13G

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $16.49-$24.14

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Out torque : 3.2N.m

Length : 48mm

Rated Current : 1.5A

Rated Voltage : 12V

Gear reduction ratio : 1：13

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The reducer can reduce the number of steps of the motor, thereby reducing the angular displacement of each step and improving positioning accuracy.

The application in medical equipment includes the positioning of precision surgical tools and the adjustment of patient support platforms.

Features:

Bipolar or unipolar versions available
We offer customizable services and warmly welcome contract manufacturing
Having operated in China for 12 years, we have catered to over 800 customers
Professional drivetrain solution specialist
Customizations on request

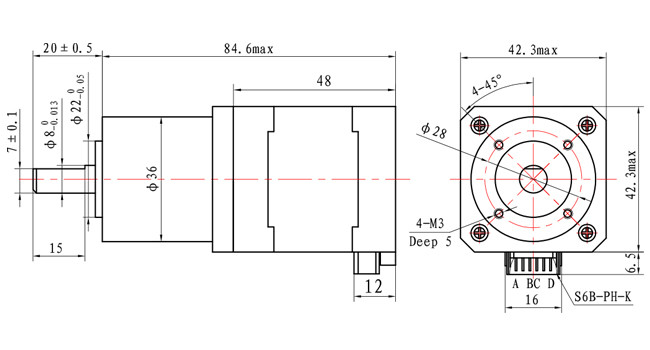

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Out Torque (ref)	3.2N.m (at10RPM)
Resistance	1.65 hm
Inductance	2.8 mH
Rotor Inertia	38 g-cm²
Motor weight	0.56 kg
Gear Reduction Ratio	1:13
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

High Torque NEMA 17 Economy Planetary 42*42*48mm Stepper Motor Gear Ratio 1:13

Please click the "Get a quote" button below to tell us your requirements.
