Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

Name: Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof
Brand: Casun
Price: 3.14 USD

Quality Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof wholesale

Brand Name : Casun

Model Number : F86SHD4117-176TOH

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 3.8N.M

Current : 1.3A

Motor Length : 76mm

Lead : Tr15.88×2.54

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 86mm Stepper motors can respond very quickly to commands, providing fast acceleration and deceleration, which is very useful for applications that require quick adjustment.

It has been widely used in industrial applications that require precision, stability, and fast motion.

Features:

Both high torque and accuracy
For electronic industrial equipment and high-tech industry equipment
We offer customizable services and warmly welcome contract manufacturing
Each model of our stepper motor is suitable for diverse applications
High torque and high precision

Motor Specifications

Step Angel	1.8 °
Fram Size	86 mm
Number of Phase	2 Phase
Rated Current	1.3 A
Holding Torque	3.8 N.m
Resistance	9.2 ohm
Inductance	71 mH
Rotor Inertia	1760 g-cm²
Motor weight	2.5 kg
Number of leads	4
Connection	Bipolar

Appearance

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

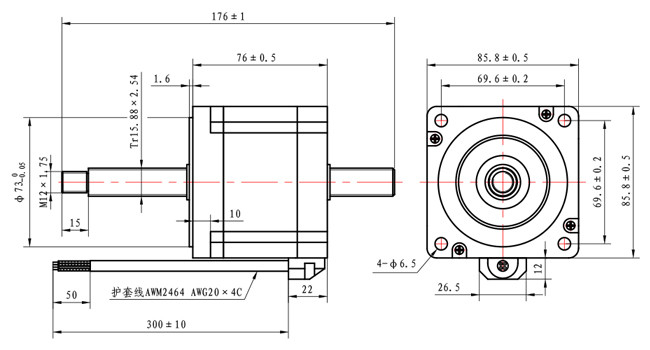

Dimensions

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
