1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

Name: 12 Degree NEMA 17 Stepper Motor 3 Phase 12A With CE RoHS ISO
Brand: Casun
Price: 3.14 USD

Quality 1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO wholesale

Brand Name : Casun

Model Number : 42SHF3202-22L1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.2°

Holding Torque : 360mN.m

Current : 1.2A

Motor Length : 40mm

Shaft : Round Shaft 22mm Length

Phase : Three

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Widely used in industrial applications that require precision, stability, and fast motion.

Through pulse signal control, it is easy to achieve complex motion trajectories.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Our engineers will contact you within 48 hours to provide the best solution
We possess expertise in drivetrain solutions
Established in China for 12 years and has served more than 800 customers

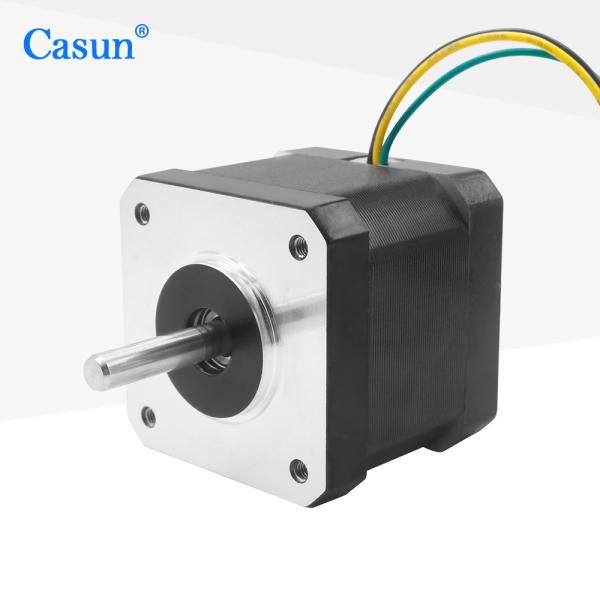

Appearance

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

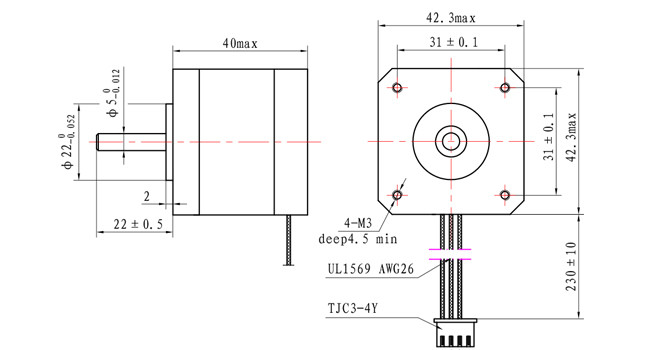

Dimensions

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

Motor Specifications

Step Angel	1.2 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	360 mN.m
Resistance	9.0 ohm
Inductance	10.3 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	3
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
