The screw design reduces mechanical friction and backlash, making the system run more smoothly.
Widely used in various fields such as medical equipment, semiconductor processing, valve control, X-Y workbench, handheld instruments, etc.
Features:
-
Bipolar or unipolar versions available
-
Dealers are actively sought!
-
We offer customized services and accept contract manufacturing
-
Each model of our stepper motor is suitable for various applications
-
Expertise in research, development, and manufacturing
Motor Specifications
| Step Angel | 1.8 ° |
| Fram Size | 28mm |
| Number of Phase | 2 Phase |
| Rated Current | 0.67Amp |
| Holding Torque | 60 mN.m |
| Resistance | 5.6 ohm |
| Inductance | 3.4 mH |
| Rotor Inertia | 9g-cm² |
| Motor weight | 0.12kg |
| Lead Screw | Tr5X8 |
| Connection | Bipolar |
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
Torque Curves
Submodels
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder | Brake | Gearbox | Shaft
Please click the "Get a quote" button below to tell us your requirements.
Product Tags:
|
|

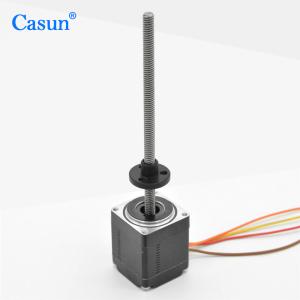

NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment Images
|
