1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Name: 18 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mNM 03A For SMT Machine
Brand: Casun
Price: 4.14 USD

Quality 1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine wholesale

Brand Name : Casun

Model Number : 36SHD4301-11B1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 70mN.m

Current : 0.3A

Motor Length : 15.3mm

Shaft : Milling Flat Shaft 11mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Controlled by the number of pulses, there is no need for additional position sensors to provide feedback on the motor's position.

Applied to various automation equipment, robots, 3D printers, CNC machine tools, medical equipment, and many other fields.

Features:

Welcoming contract manufacturing
Offer specialised services
Available in single or double shaft versions
Dealers wanted!!
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

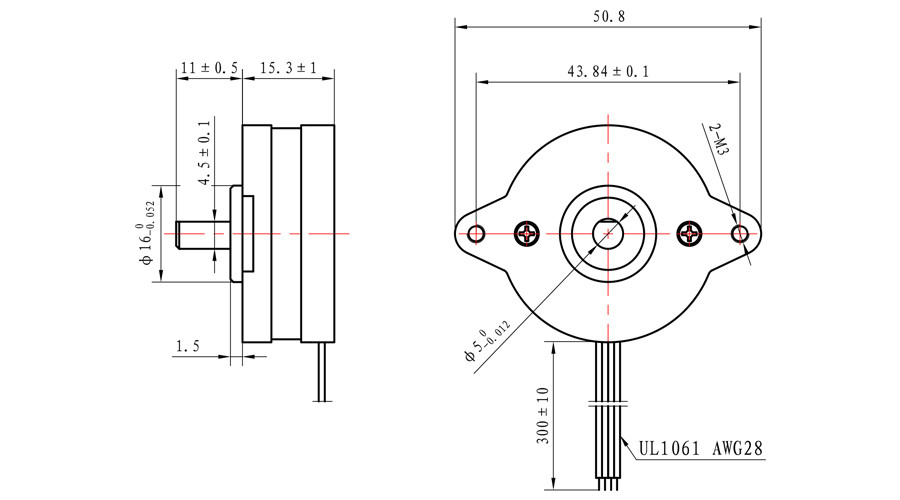

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
