1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 424248mm 0.55N.m 4 Wires

Name: 18 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 424248mm 055Nm 4 Wires
Brand: Casun
Price: 20 USD

Quality 1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires wholesale

Brand Name : Casun

Model Number : 42SHD4419-27PQ

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $20-$28

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Customized : The motor can be designed &manufactured with customized request.

Current : 1.68A

Holding Torque : 0.55 Nm

Step Angle : 1.8 degrees

Motor weight : 0.38kg

Contact Now

The closed-loop system can detect and correct this situation through feedback mechanism, greatly reducing the possibility of stepping out.

It can maintain stable operation even under conditions such as drastic changes in load and fluctuations in power supply voltage.

Features:

Bipolar or unipolar versions available
Provide "multiple international certifications"
With 12 years of experience in China, we have served over 800 customers
Our engineering team will contact you within two business days to present the optimal solution
Seeking dealers!

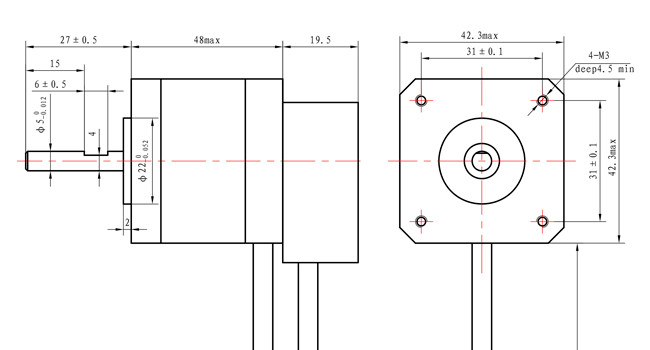

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	550 mN.m
Resistance	1.65 ohm
Inductance	2.7 mH
Rotor Inertia	72 g-cm²
Motor weight	0.62 kg
Encoder Pulsh	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.8 Degree 2 Phase NEMA 42 Stepper Motor with Encoder 42*42*48mm 0.55N.m 4 Wires

Please click the "Get a quote" button below to tell us your requirements.
