Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

Name: Stepper Motor Nema 14 35x35x20mm 18 Degree 2 Phase Hybrid 04A for Stage Lighting
Brand: Casun
Price: 4.14 USD

Quality Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting wholesale

Brand Name : Casun

Model Number : P35SHD0303-15H

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 60mN.m

Current : 0.4A

Motor Length : 20mm

Shaft : Round Shaft 15mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 14 stepper motors have high efficiency and can fully utilize electrical energy for conversion and movement.

Its performance and cost advantages make it the preferred motor for many applications.

Features:

Bipolar or unipolar versions available
High accuracy and torque
Available in single or double shaft versions
Each model of stepper motor can be suitable for different scenarios
High torque and high precision

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	60 mN.m
Resistance	22 ohm
Inductance	15 mH
Rotor Inertia	10 g-cm²
Motor weight	0.09 kg
Number of leads	4
Connection	Bipolar

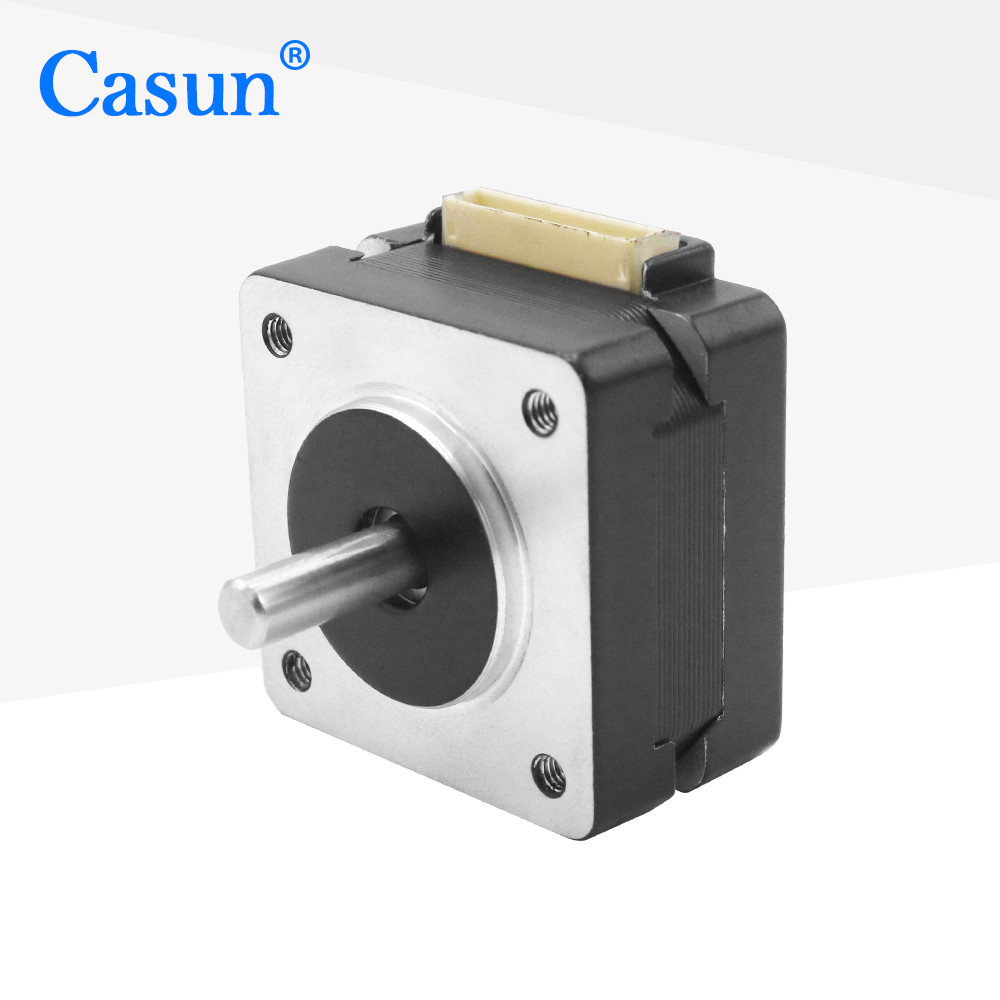

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
