1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices

Name: 18 Hybrid NEMA 23 Stepper Motor 101Nm 28A For Medical Devices
Brand: Casun
Price: 3.14 USD

Quality 1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices wholesale

Brand Name : Casun

Model Number : 57SHD0212-21B1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 1010mN.m

Current : 2.8A

Motor Length : 50mm

Shaft : Milling flat Shaft 21mm Length

Shaft Diameter : 6.35mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 23 stepper motors are suitable for various industries and fields, such as industrial automation, robotics, 3D printing, medical devices, etc.

It can be driven through a simple open-loop control method without the need for complex feedback systems.

Features:

High torque and high precision
accept contract manufacturing
Professional drivetrain solution specialist
Specialists in professional drivetrain solutions
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1010 mN.m
Resistance	0.83 ohm
Inductance	2.2 mH
Rotor Inertia	220 g-cm²
Motor weight	0.55 kg
Number of leads	4
Connection	Bipolar

Appearance

1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices

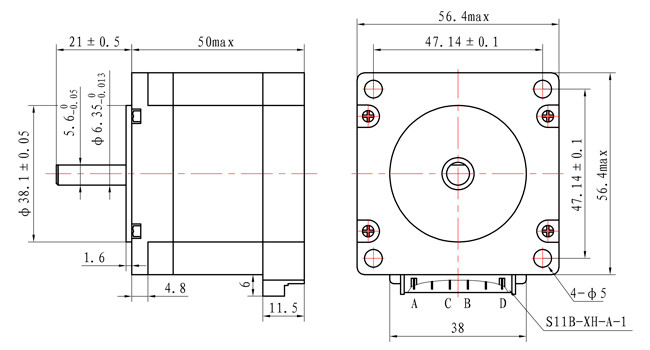

Dimensions

1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
