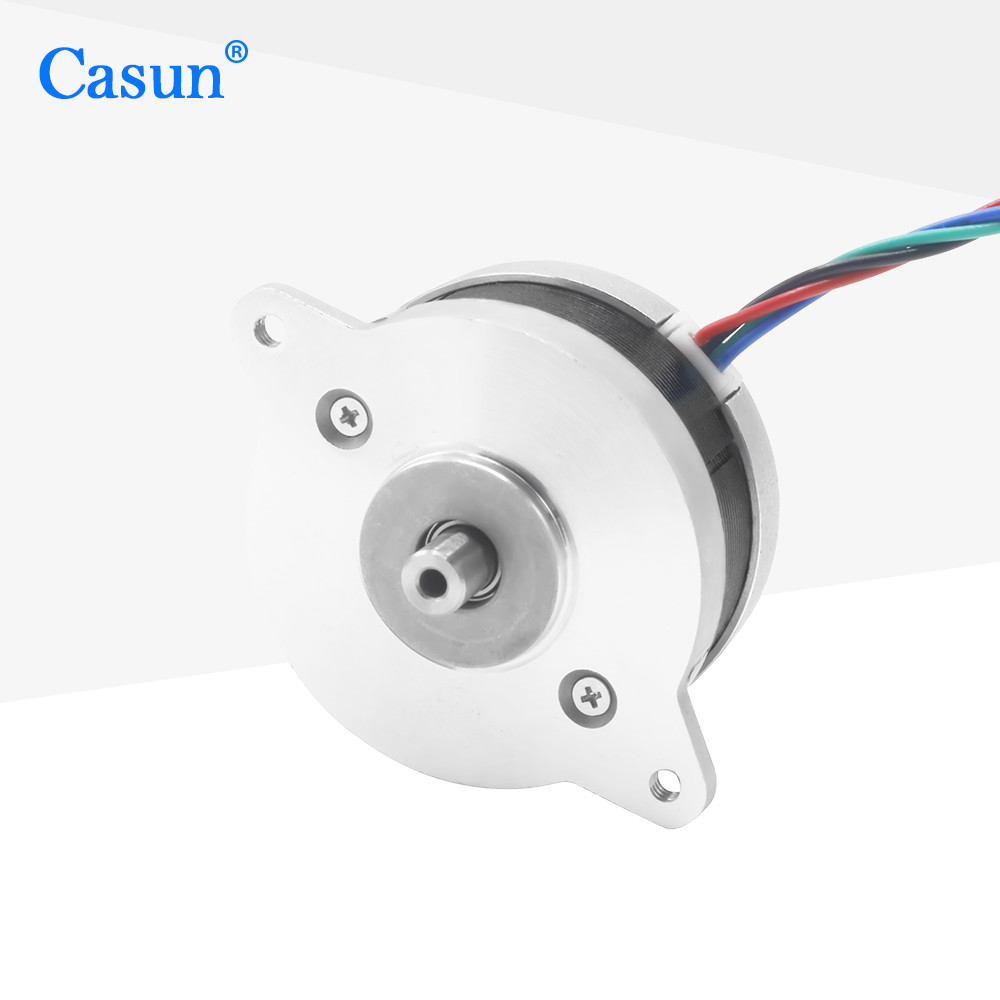

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor with CE ISO

Name: 18 Degree 2 Phase 10A 100mNm NEMA 14 Hybrid Stepper Motor with CE ISO
Brand: Casun
Price: 4.14 USD

Quality 1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor with CE ISO wholesale

Brand Name : Casun

Model Number : 36SHD4401-6K

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 100mN.m

Current : 1.0A

Motor Length : 18.6mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Capable of stable operation in different working environments, including high temperature, low temperature, and humidity, with strong adaptability.

Made with high-quality materials and processes, it has strong durability and anti-interference ability.

Features:

We welcome contract manufacturing projects
Offer specialised services
Available in single or double shaft versions
Our stepper motors are versatile and adaptable to various applications
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	100 mN.m
Resistance	2.15 ohm
Inductance	8.0 mH
Rotor Inertia	13.7 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

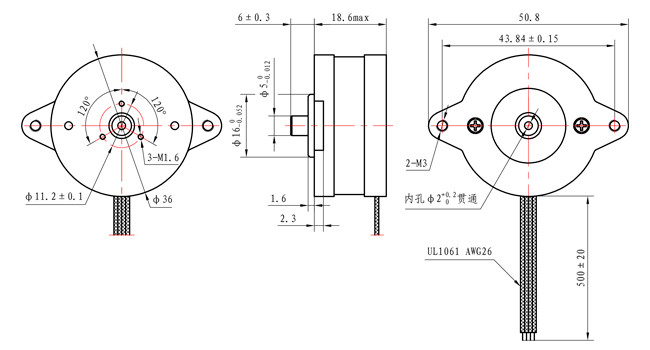

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
