NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot

Name: NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 014Nm 10A Stepper Motor For Robot
Brand: Casun
Price: 4.14 USD

Quality NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot wholesale

Brand Name : Casun

Model Number : P35SHD4113-21SH

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 60mN.m

Current : 0.4A

Motor Length : 20mm

Shaft : Round Shaft 15mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The dual output shaft structure can better balance the load and reduce the wear of bearings and mechanical components.

Suitable for various mechanical structures and application scenarios, such as robots, CNC machines, 3D printers, etc.

Features:

Bipolar or unipolar versions available
High accuracy and torque
Available in single or double shaft versions
We specialize in custom solutions
Custom solutions and contract manufacturing are available. We are seeking dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	140 mN.m
Resistance	2.7 ohm
Inductance	4.3 mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

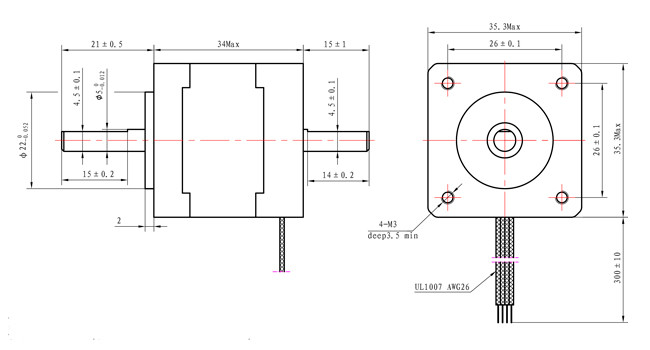

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
