2 Phase 1.8 deg Nema 14 Stepping Motor 12V 26mm body 0.14N.m for Stage Lighting

Name: 2 Phase 18 deg Nema 14 Stepping Motor 12V 26mm body 014Nm for Stage Lighting
Brand: Casun
Price: 4.14 USD

Quality 2 Phase 1.8 deg Nema 14 Stepping Motor 12V 26mm body 0.14N.m for Stage Lighting wholesale

Brand Name : Casun

Model Number : P35SHD4003-10B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 100mN.m

Current : 0.4A

Motor Length : 26mm

Shaft : Milling flat Shaft 10mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Easy to install in various devices, such as 3D printers, robots, automation equipment, etc.

The noise generated by stepper motors during operation is relatively small, making them suitable for applications with high noise requirements.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Expertise in transmission system solutions, with a focus on specialized expertise
Seeking dealers! !
Ten-year warranty and purchase with confidence

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	140 mN.m
Resistance	30 ohm
Inductance	26.5 mH
Rotor Inertia	12 g-cm²
Motor weight	0.15 kg
Number of leads	4
Connection	Bipolar

Appearance

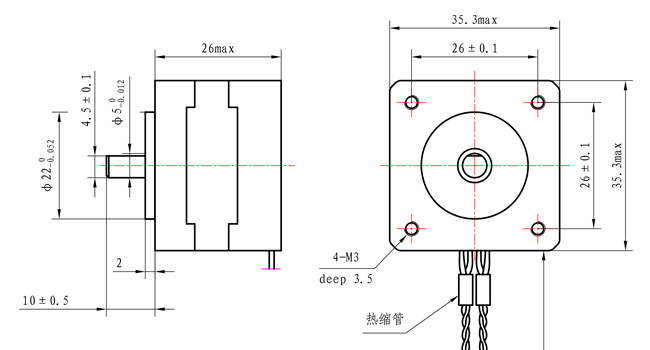

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
