250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm

Name: 250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm
Brand: Casun
Price: 4.14 USD

Quality 250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm wholesale

Brand Name : Casun

Model Number : P35SHD0809-21B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 250mN.m

Current : 0.7A

Motor Length : 40mm

Shaft : Milling Flat Shaft 21mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 35mm stepper motor can drive a load with a relatively high torque, causing it to rotate or move.

It is ideal for applications with large loads, such as Automatic door, medical equipment and automated production lines.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Professional research and development manufacturing
Each model of stepper motor can be suitable for different scenarios
Needed dealers! !

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	250 mN.m
Resistance	7.2 ohm
Inductance	7.7 mH
Rotor Inertia	35 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

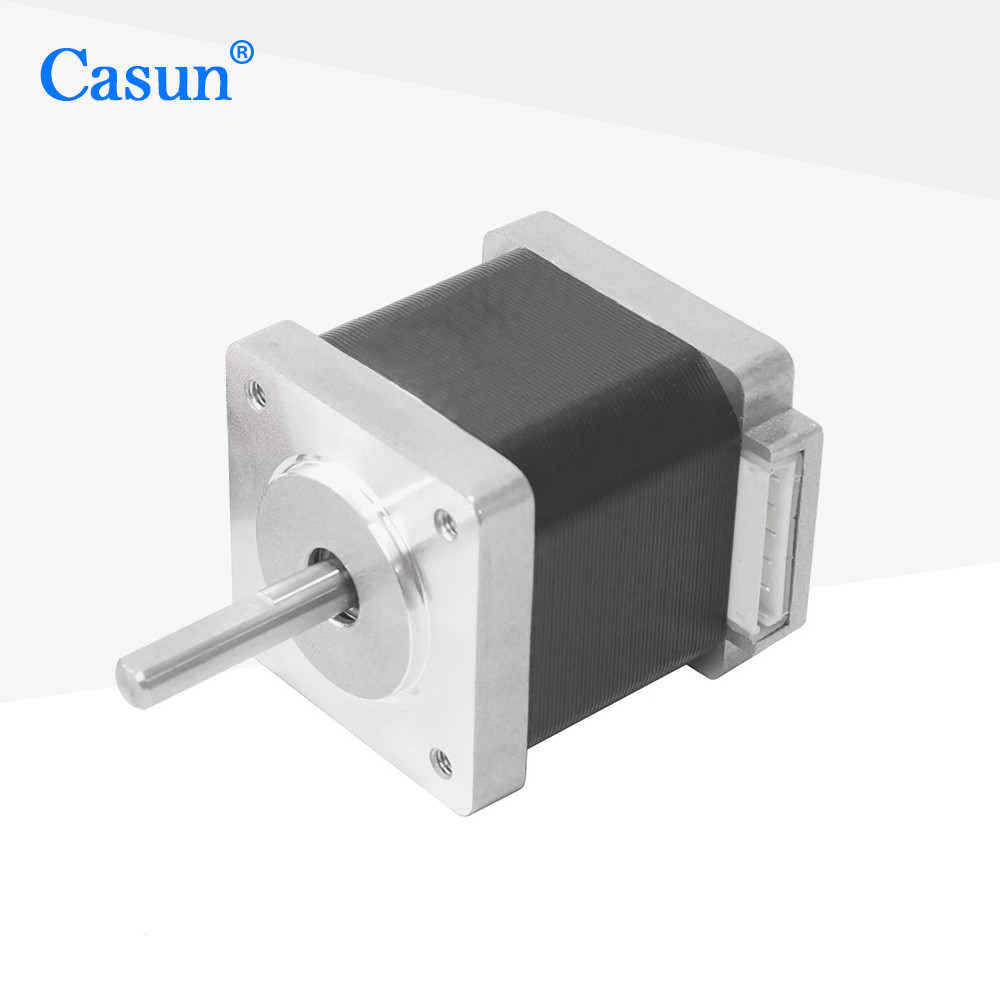

Appearance

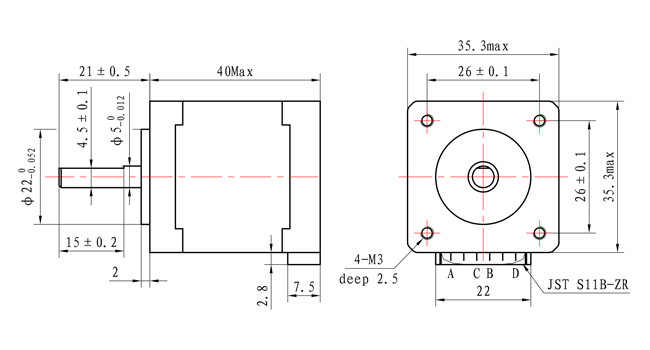

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
