12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

Name: 125mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
Brand: Casun
Price: 4.14 USD

Quality 12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor wholesale

Brand Name : Casun

Model Number : 36SHD4001-11B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 22mN.m

Current : 0.3A

Motor Length : 12.5mm

Shaft : Milling Flat Shaft 11mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

【36SHD4001】2 Phase 1.8 deg Nema 14 Stepping Motor Ultrathin 12.5mm body for Remote Control PTZ

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

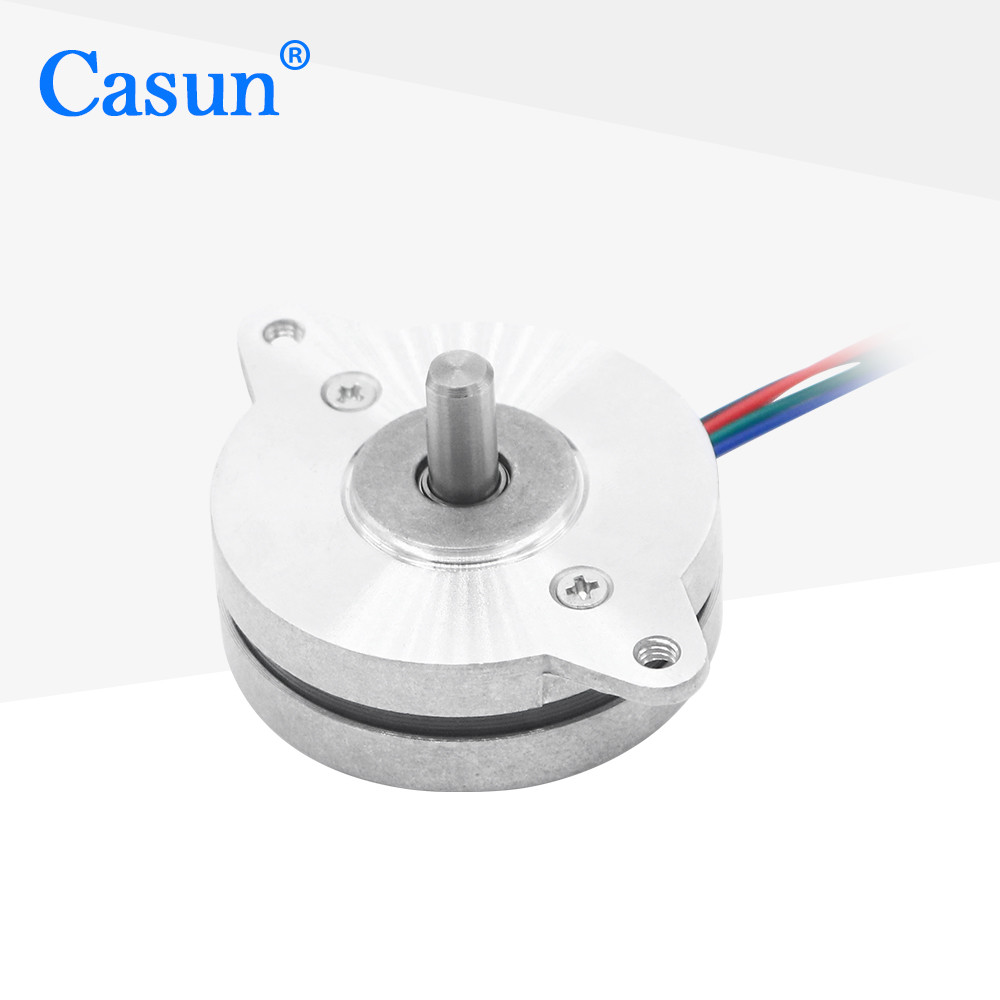

Appearance

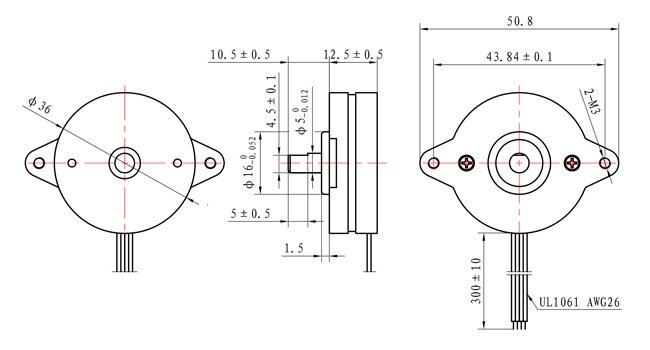

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	22 mN.m
Resistance	20 ohm
Inductance	6.8 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
