120mN.M 0.17kg NEMA 16 Stepper Motor For 3D Printer / Engraving Machine

Name: 120mNM 017kg NEMA 16 Stepper Motor For 3D Printer Engraving Machine
Brand: Casun
Price: 3.38 USD

Quality 120mN.M 0.17kg NEMA 16 Stepper Motor For 3D Printer / Engraving Machine wholesale

Brand Name : Casun

Model Number : 39SHY4001-30

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.38-$4.38

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 120mN.m

Current : 0.4A

Motor Length : 25mm

Shaft : Round Shaft 30mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

Nema16 Stepper Motor 1.8 ° 39X25mm 0.4A 120mN.m 0.17kg for 3D Printer/Engraving Machine

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	120mN.m
Resistance	23.3ohm
Inductance	19.8mH
Rotor Inertia	15 g-cm²
Motor weight	0.17kg
Number of leads	4
Connection	Bipolar

Appearance

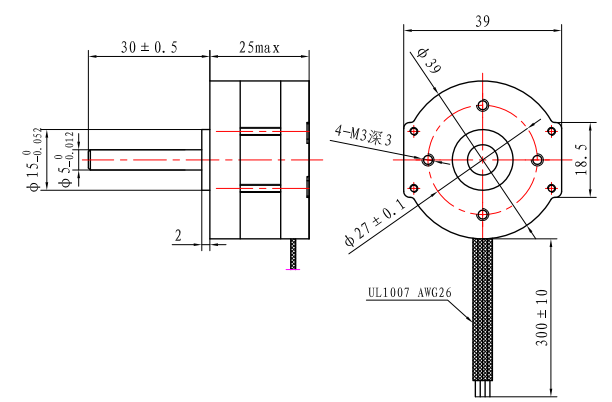

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
