STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m

Name: STEPPER MOTOR 18 2 PHASE NEMA 17 42X42X40mm 450mNm
Brand: Casun
Price: 3.14 USD

Quality STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m wholesale

Brand Name : Casun

Model Number : 42SHD0217-24

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 400mN.m

Current : 1.5A

Motor Length : 40mm

Shaft : Round Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 17 stepper motors typically have lower costs, making them highly attractive in cost sensitive applications.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

Bipolar or unipolar versions available
We provide tailored services and welcome contract-based production
Dealers are sought after
CE and RoHS approved
Customizations on request

Appearance

STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m

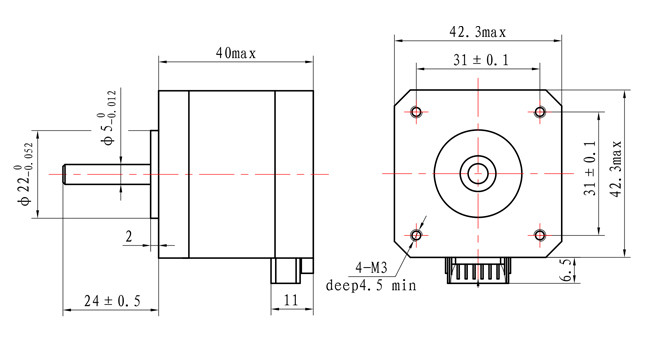

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	400 mN.m
Resistance	2.2 ohm
Inductance	5.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
