【42SHD0219】424240mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH

Name: 42SHD0219424240mm Stepper Motor 18 Degree NEMA 17 Hybrid for CNC with CE ROCH
Brand: Casun
Price: 3.14 USD

Quality 【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH wholesale

Brand Name : Casun

Model Number : 42SHD0219-20B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 300mN.m

Current : 1.2A

Motor Length : 40mm

Shaft : Milling Flat Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The design of 42mm stepper motors allows them to be used in different configurations.

Quickly respond to changes in input signals, achieving fast start, stop, and reverse operations.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Enjoy a ten-year warranty for peace of mind with your purchase
Dealers are encouraged to apply

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	4 Phase
Rated Current	1.2 A
Holding Torque	300 mN.m
Resistance	3.2 ohm
Inductance	3.0 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	6
Connection	Bipolar

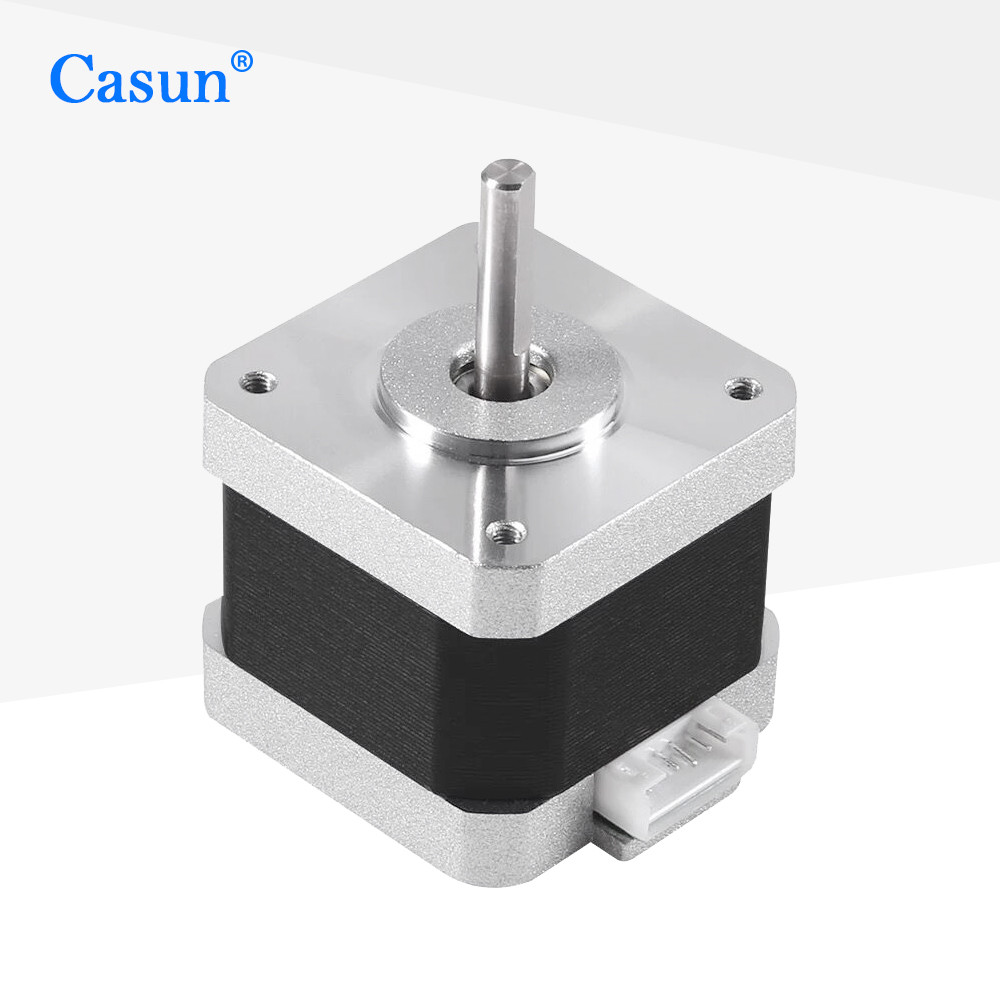

4Appearance

【42SHD0219】42*42*40mm Stepper Motor 1.8° Degree NEMA 17 Hybrid for CNC with CE ROCH

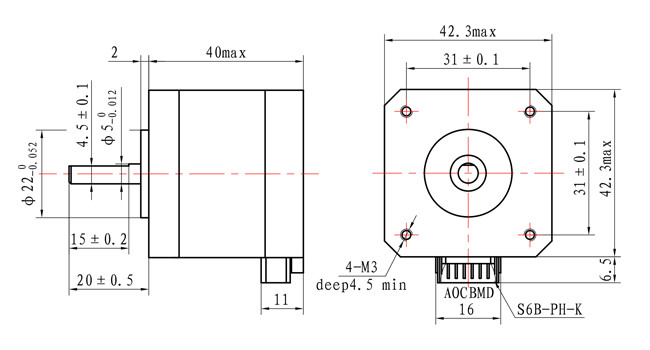

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
