0.9 Degree NEMA 17 Stepper Motor 0.4N.m 40mm body 1.2A 4-lead for CNC 3D Printer

Name: 09 Degree NEMA 17 Stepper Motor 04Nm 40mm body 12A 4lead for CNC 3D Printer
Brand: Casun
Price: 3.14 USD

Quality 0.9 Degree NEMA 17 Stepper Motor 0.4N.m 40mm body 1.2A 4-lead for CNC 3D Printer wholesale

Brand Name : Casun

Model Number : 42SHD4246-30BH

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 400mN.m

Current : 0.7A

Motor Length : 40mm

Shaft : Milling Flat Shaft 30mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The NEMA 17 stepper motor is used for precision adjustment and positioning, such as printing head positioning, laser head positioning for optical disc drives, etc.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

High torque and high precision
Accept contract manufacturing
Our engineering team will reach out within 48 hours to deliver the optimal solution
Professional research and development manufacturing
Established in China for 12 years and has served more than 800 customers

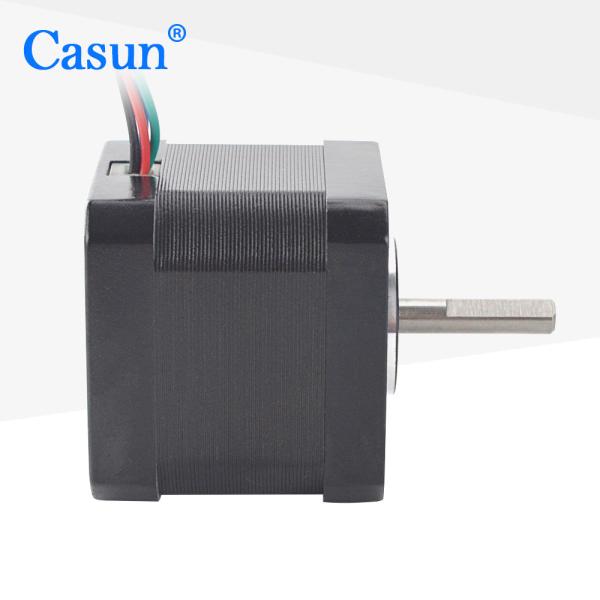

Appearance

0.9 Degree NEMA 17 Stepper Motor 0.4N.m 40mm body 1.2A 4-lead for CNC 3D Printer

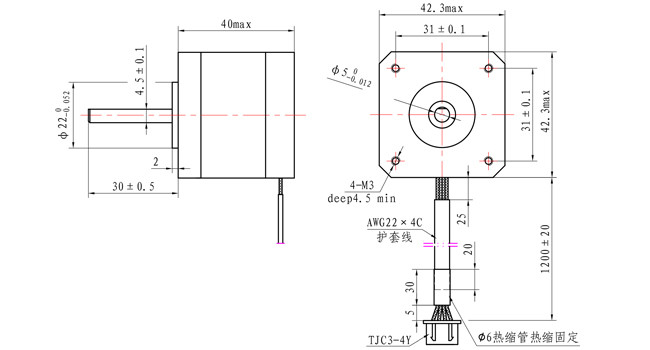

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	400 mN.m
Resistance	12 ohm
Inductance	20 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
