【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine

Name: 42SHD4231NEMA 17 Bipolar Stepper Motor DC 12V 17A 40mm body with 4 wire for CNC Machine
Brand: Casun
Price: 3.14 USD

Quality 【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine wholesale

Brand Name : Casun

Model Number : 42SHD4231-24

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 400mN.m

Current : 1.7A

Motor Length : 40mm

Shaft : Round Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Customizations on request
Hybrid stepper construction
Available in single or double shaft versions
Professional research and development manufacturing
Established in China for 12 years and has served more than 800 customers

Appearance

【42SHD4231】NEMA 17 Bipolar Stepper Motor DC 12V 1.7A 40mm body with 4 wire for CNC Machine

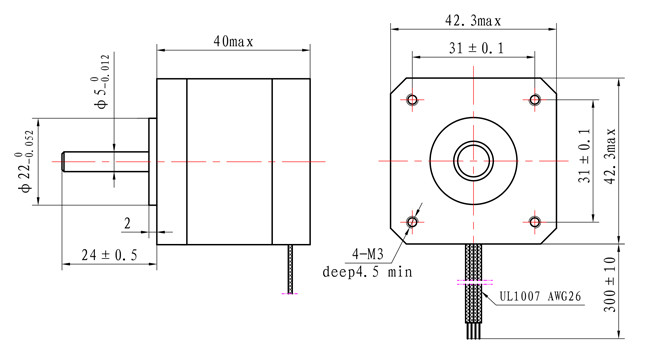

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.7 A
Holding Torque	400 mN.m
Resistance	1.5 ohm
Inductance	2.8 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
