【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE

Name: 42SHD043518 Degree 12V 400mNm High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE
Brand: Casun
Price: 3.14 USD

Quality 【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE wholesale

Brand Name : Casun

Model Number : 42SHD0435-24B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 400mN.m

Current : 0.4A

Motor Length : 48mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The NEMA 17 stepper motor has fast response characteristics and can complete start and stop operations in a short period of time.

Compared to other types of motors, its reliability is higher.

Features:

Provide specialised services
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Professional drivetrain solution specialist
To offer the best solution, our engineers will contact you within 48 hours

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	4 Phase
Rated Current	0.4 A
Holding Torque	400 mN.m
Resistance	30 ohm
Inductance	23 mH
Rotor Inertia	81 g-cm²
Motor weight	0.38 kg
Number of leads	6
Connection	Bipolar

Appearance

【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE

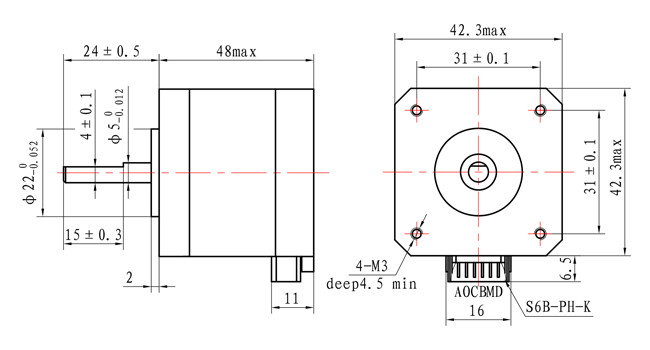

Dimensions

【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
