424234mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

Name: 424234mm Steppting Motor NEMA 17 Two Phase 12V 03Nm for 3D Printer
Brand: Casun
Price: 3.14 USD

Quality 42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer wholesale

Brand Name : Casun

Model Number : 42SHD0002-24B1

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 300mN.m

Current : 0.5A

Motor Length : 34mm

Shaft : Milling Flat Shaft 24mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

In the field of robotics, 42mm stepper motors are often used to control joint motion.

Features:

High torque and high precision
High-tech industry and electronic industry equipment necessitate multiple international certifications
Available in single or double shaft versions
We are open to contract manufacturing arrangements
We actively pursue dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.55 A
Holding Torque	300 mN.m
Resistance	22 ohm
Inductance	28 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

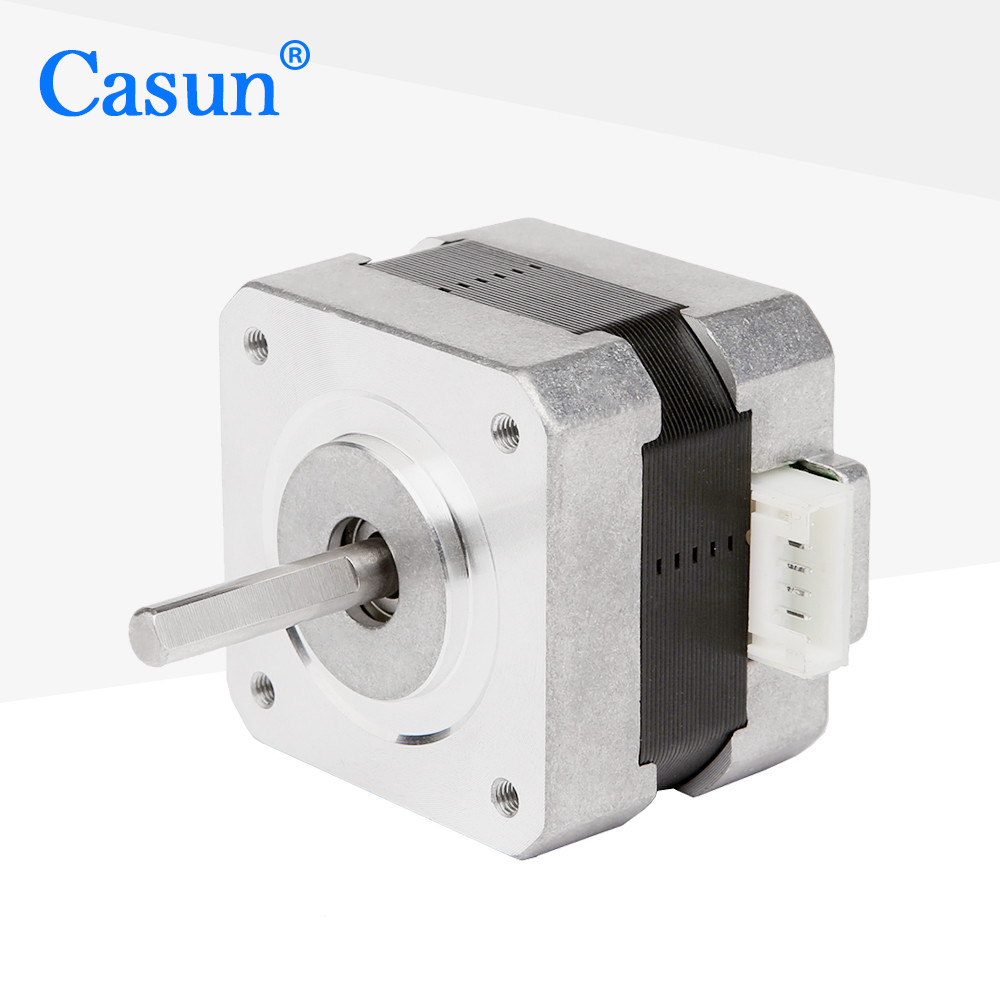

Appearance

42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

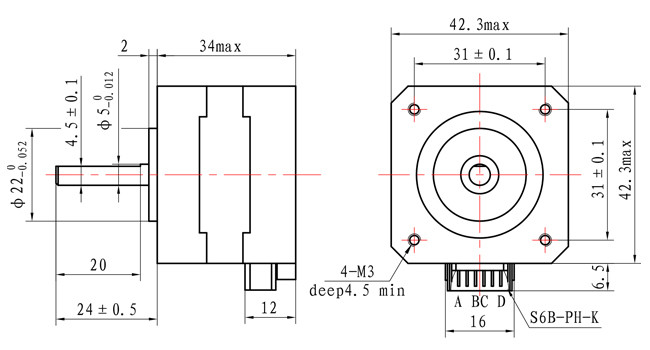

Dimensions

42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft
