NEMA 17 Hybrid Stepper Motor 2 phase 424221mm Ultrathin Body 9Ncm for CNC Kit

Name: NEMA 17 Hybrid Stepper Motor 2 phase 424221mm Ultrathin Body 9Ncm for CNC Kit
Brand: Casun
Price: 3.14 USD

Quality NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit wholesale

Brand Name : Casun

Model Number : 42SHD4910-14B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 90mN.m

Current : 1.0A

Motor Length : 21mm

Shaft : Milling Flat Shaft 14mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

NEMA 17 stepper motors typically have lower costs, making them highly attractive in cost sensitive applications.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Professional drivetrain solution specialist
Our engineering team will reach out within 48 hours to deliver the optimal solution

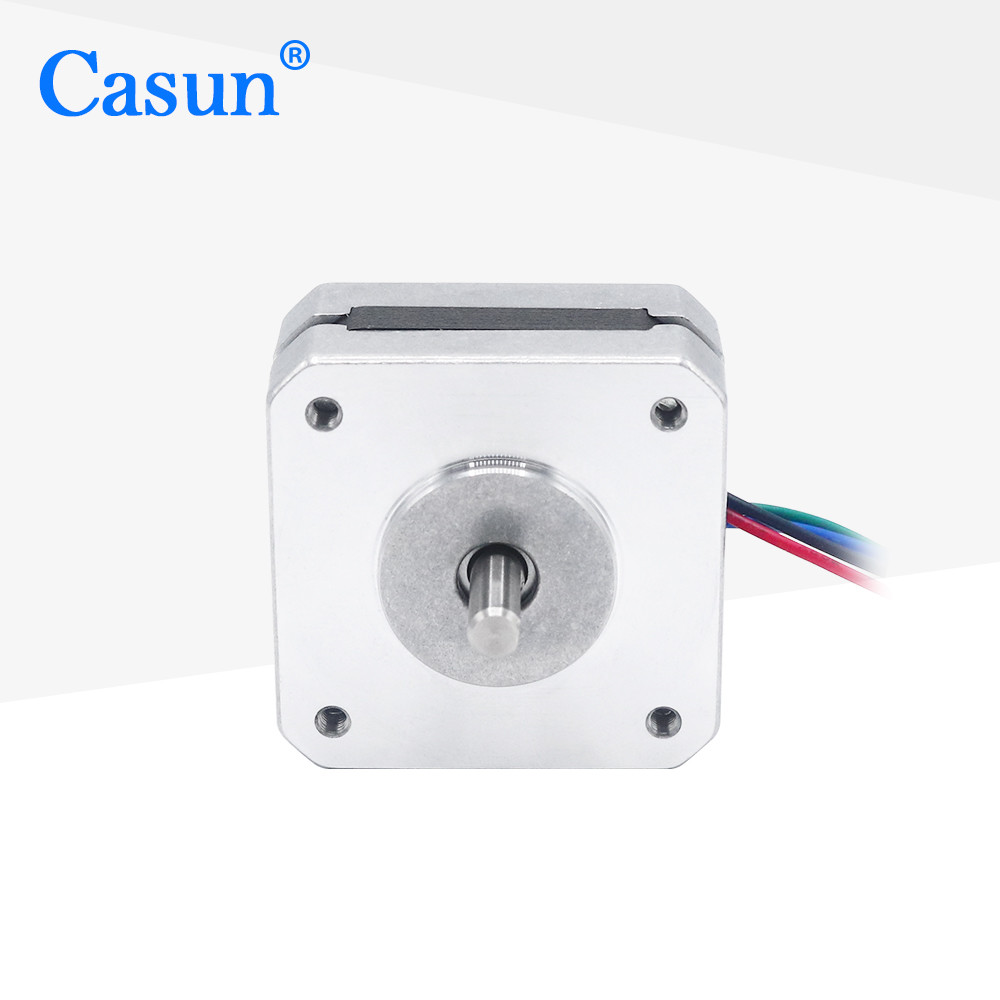

Appearance

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

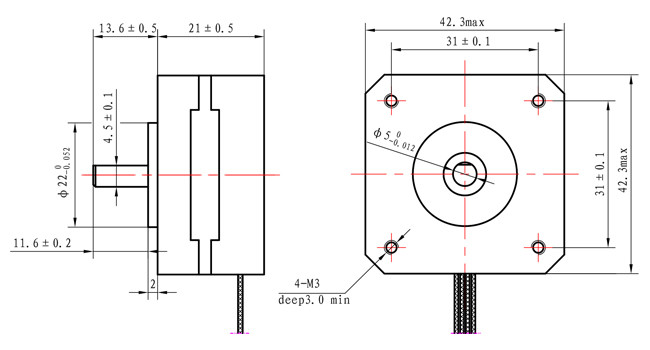

Dimensions

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	90 mN.m
Resistance	3.3 ohm
Inductance	3.0 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
