1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine

Name: 132NM NEMA 23 Steper Motor 57x57x76mm 10A For Knitting Machine
Brand: Casun
Price: 3.14 USD

Quality 1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine wholesale

Brand Name : Casun

Model Number : 57SHD4824-20B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 1.32N.m

Current : 1.0A

Motor Length : 76mm

Shaft : Milling Flat Shaft 20mm Length

Shaft Diameter : 6.35mm

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.32N.M NEMA 23 Steper Motors 57x57x76mm Special Offer 1.0A For Knitting Machine

The NEMA23 stepper motor can drive equipment such as looms and spinning machines, effectively controlling their speed and load.
By controlling the current and motion plan, production efficiency and quality can be improved.

Features:

High torque and high precision
We are actively seeking dealers
We provide customized services and are open to contract manufacturing
With 12 years of operation in China, we have served over 800 customers
Our engineers will contact you within 48 hours to offer the best solution

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	1.32 N.m
Resistance	6.5 ohm
Inductance	20 mH
Rotor Inertia	460 g-cm²
Motor weight1	1 kg
Number of leads	4
Connection	Bipolar

Appearance

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine

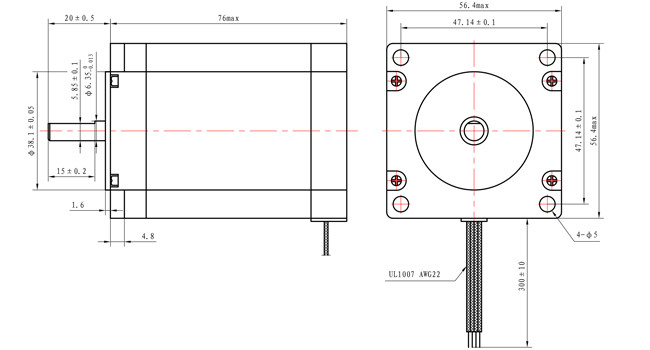

Dimensions

1.32N.M NEMA 23 Steper Motor 57x57x76mm 1.0A For Knitting Machine

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
