Hybrid 0.28N.M 42*42*34mm With CE ISO9001 NEMA 17 Step Motor
The 42mm stepper motor can accurately control the rotation position and speed based on the input pulse signal.
Industrial automation 3D printers, textile machinery, medical equipment, office equipment.
Features:
-
High torque and high precision
-
Ten-year warranty for confident purchases
-
Specialists in drivetrain solutions
-
Our engineers will reach out within 48 hours to offer the optimal solution
-
We actively pursue dealers!
Motor Specifications
Step Angel | 1.8 ° |
Fram Size | 42 mm |
Number of Phase | 2 Phase |
Rated Current | 0.8 A |
Holding Torque | 280 mN.m |
Resistance | 5.6 ohm |
Inductance | 7.5 mH |
Rotor Inertia | 38 g-cm² |
Motor weight | 0.2 kg |
Number of leads | 4 |
Connection | Bipolar |

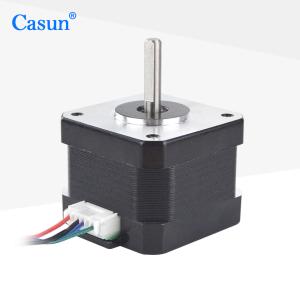

Appearance

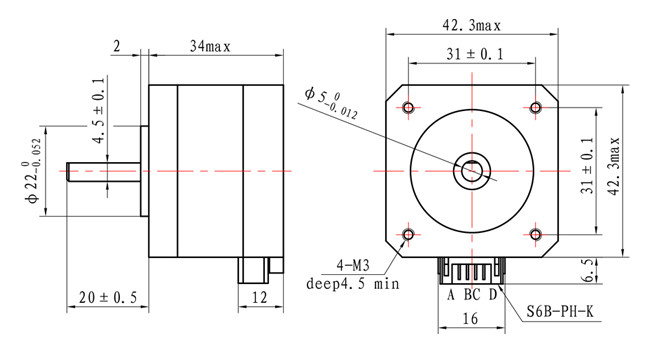

Dimensions
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Torque Curves
Submodels
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder | Brake | Gearbox | Shaft |
 |  |  |  |
Please click the "Get a quote" button below to tell us your requirements.
