42*42*34mm Motor Stepper Motors Nema 17 For Medical Equipment With CE
Widely used in medical equipment, such as medical robots, surgical instruments, medical injection pumps, etc.
NEMA 17 stepper motors typically come in various specifications and models to meet different engineering needs.
Features:
-
High torque and high precision
-
Contract manufacturing accepted
-
Specializing in drivetrain solutions
-
Having operated in China for 12 years, we have catered to over 800 customers
-
Seeking dealers! !
Motor Specifications
Step Angel | 1.8 ° |
Fram Size | 42 mm |
Number of Phase | 2 Phase |
Rated Current | 1.2 A |
Holding Torque | 210 mN.m |
Resistance | 2.7 ohm |
Inductance | 2.1 mH |
Rotor Inertia | 38 g-cm² |
Motor weight | 0.2 kg |
Number of leads | 4 |
Connection | Bipolar |

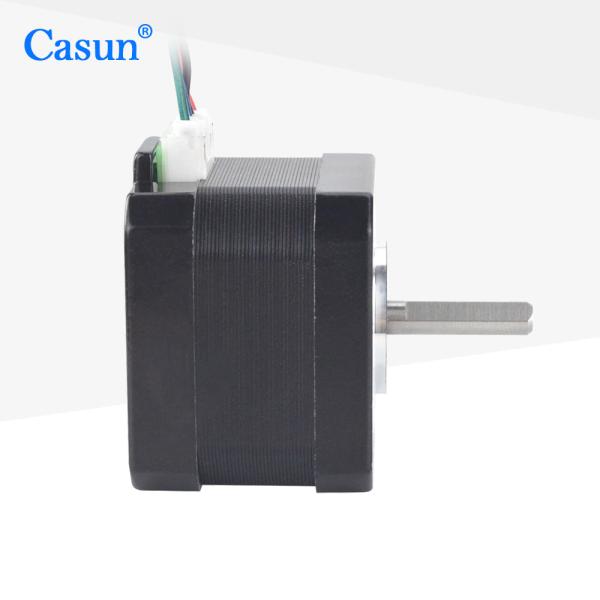

Appearance

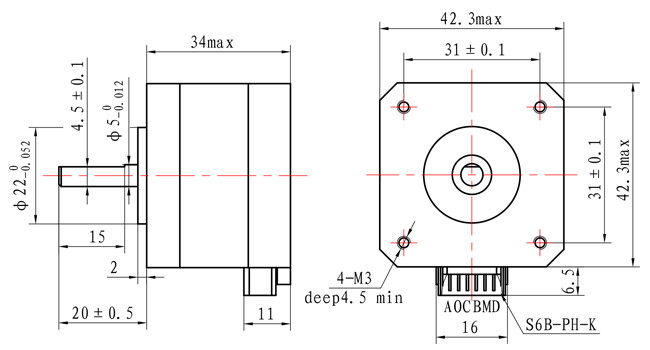

Dimensions
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Torque Curves
Submodels
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder | Brake | Gearbox | Shaft |
 |  |  |  |
Please click the "Get a quote" button below to tell us your requirements.
