1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO

Name: 18 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO
Brand: Casun
Price: 3.14 USD

Quality 1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO wholesale

Brand Name : Casun

Model Number : 57SHD4408-21B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $3.14-$5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 1.0N.m

Current : 2.5A

Motor Length : 54mm

Shaft : Milling Flat Shaft 21mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO

By adjusting the pulse frequency sent to the motor, the speed of the stepper motor can be precisely controlled.

3D printers, CNC machine tools, automated production lines, and industrial robots.

Features:

Focused on drivetrain solutions
Our products are designed for high torque and precision
With 12 years of experience in China, we have served more than 800 customers
We provide customized services and welcome contract manufacturing
In search of partners!

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1.0 N.m
Resistance	1.2 ohm
Inductance	4.1 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

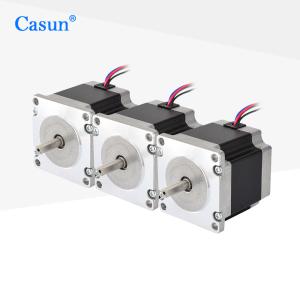

Appearance

1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO

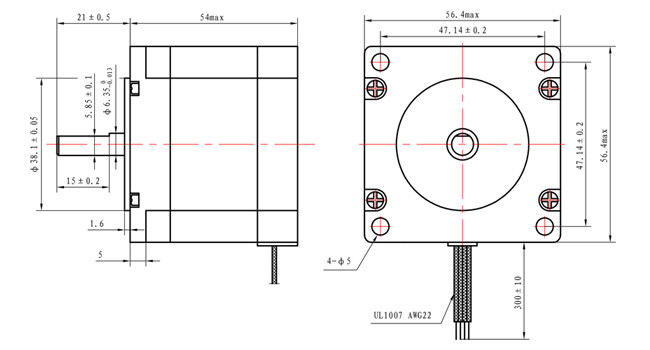

Dimensions

1.8 Degre 2 Phase 54mm Length NEMA 23 Stepper Motor With CE ROHS ISO

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
