2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 353534mm 0.15N.M For Stage Lighting

Name: 2 Phase 18 Deg Nema 14 Stepping Motor 10A 353534mm 015NM For Stage Lighting
Brand: Casun
Price: 4.14 USD

Quality 2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting wholesale

Brand Name : Casun

Model Number : 35SHD4103-10B

Certification : CE,ROHS,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $4.14-$6.98

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 155mN.m

Current : 1.0A

Motor Length : 34mm

Shaft : Milling Flat Shaft 10mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

2 Phase 1.8 Deg Nema 14 Stepping Motor 1.0A 35*35*34mm 0.15N.M For Stage Lighting

The 35mm stepper motor can quickly start and stop after receiving control signals, and has good response speed.

Provide different configuration options, such as different step angles, lengths, and torque levels.

Features:

Established in China for 12 years, we have served more than 800 customers.
Hybrid stepper construction
Available in single or double shaft versions
High torque and high precision are our specialties
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor weight	0.18 kg
Number of leads	4
Connection	Bipolar

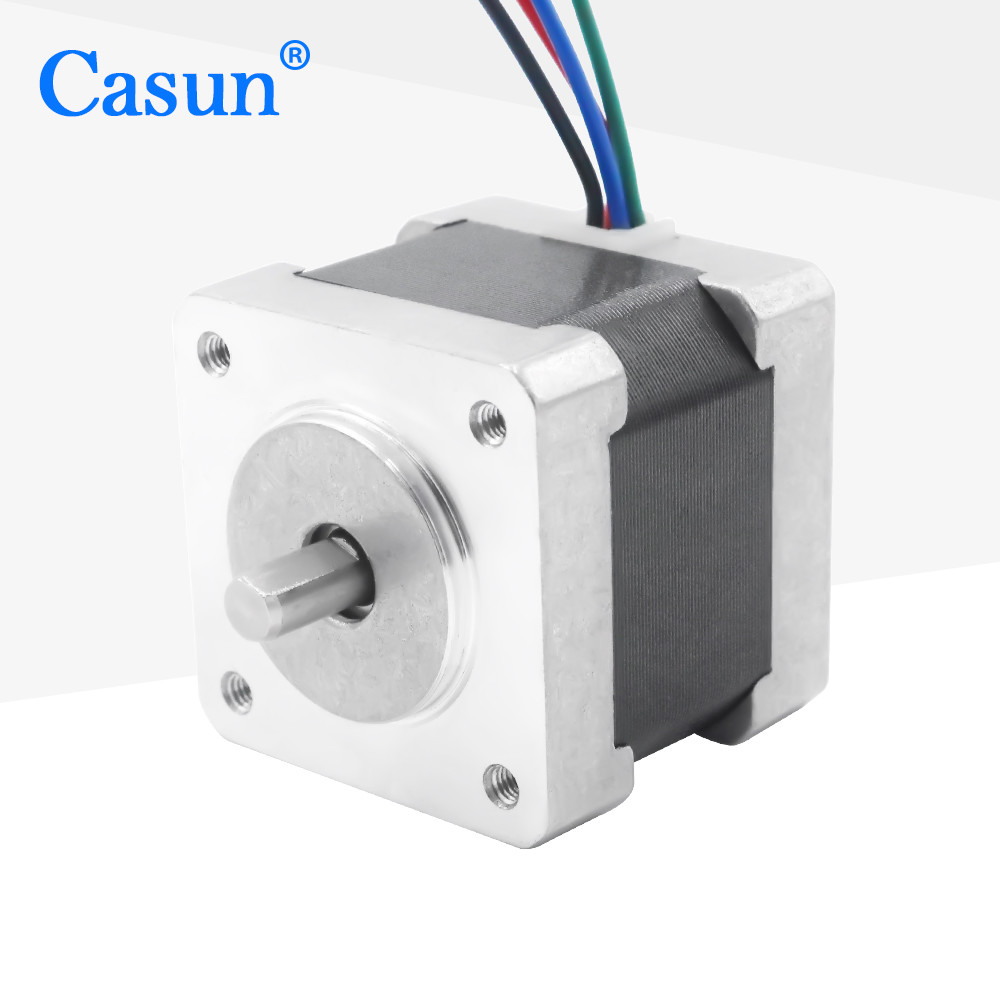

Appearance

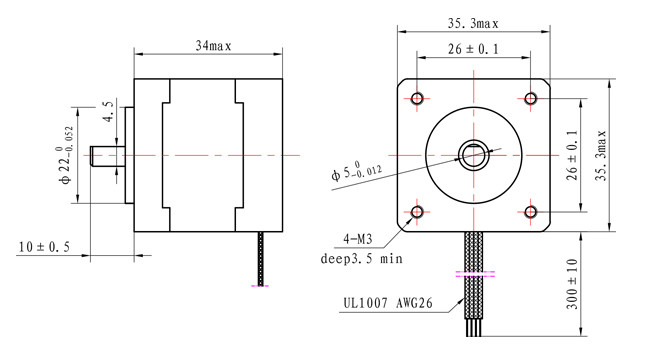

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
